Wheels, Axles, Gauges and Form Tools
These parts are available from the Parts Officer of the SSMRS
| AB1 | Brass pinpoint bearings | per pair | ||
| CW1 | Coach wheels (Mansell) 3'-6" diameter |  |
per axle | |
| CW2 | Coach wheels 3'-6" diameter |  |
per axle | |
| DW1 | 7'-0" Loco driving wheel, 20 spoke, crank in-line, I/wax brass centre casting (requires machining and tyre) |  |
Per wheel |
| DW2 | 5' 7" - 5' 8" Loco driving wheel, 18 spoke, crank in-line, I/wax brass centre casting (requires machining and tyre) |  |
Per wheel |
| DW3 | 5' 2" - 5' 3" Loco driving wheel, 16 spoke, crank in-line, I/wax brass centre casting (requires machining and tyre) | Per wheel | |
| DW4 | 5' 1" - 5' 2" Loco driving wheel, 15 spoke, crank between, I/wax brass centre casting (requires machining and tyre) | Per wheel | |
| DW5 | 4' 11" Loco driving wheel, 15 spoke, crank in-line, I/wax brass centre casting (requires machining and tyre) |  |
Per wheel |
| DW6 | 4' 10" Loco driving wheel, 16 spoke, crank in-line, I/wax brass centre casting (requires machining and tyre) |  |
Per wheel |
| DW7 | 4' 7" Loco driving wheel, 14 spoke, crank in-line, I/wax brass centre casting (requires machining and tyre) |  |
Per wheel |
| DW8 | 4' 0" Loco bogie/tender wheel, 10 spoke, I/wax brass centre casting (requires machining and tyre) |  |
Per wheel |
| DW9 | 3' 8" Loco bogie/tender wheel, 10 spoke, I/wax brass centre casting (requires machining and tyre) | Per wheel | |
| DW10 | 6' 9" Loco driving wheel, 22sp. Pin-in-line, l/wax brass centre casting |  |
Per wheel |
| DW11 | 4' 0" Loco driving wheel, 12sp. Pin-in-line, l/wax brass centre casting | Per wheel | |
| DW12 | 3' 0" dia carrying wheel - 8 spoke. l/wax brass centre casting |  |
Per wheel |
| DW13 | 3' 0" dia carrying wheel - 9 spoke. l/wax brass centre casting |  |
Per wheel |
| DW14 | 3' 0" dia 10 sp Manning Wardle driving wheel Pin between, l/wax brass centre casting |  |
Per wheel |

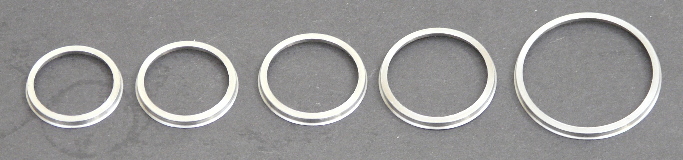

| All of the above wheels require machining and fitting with tyres. Tyres to are available for 7' (DR1), 5' 7" (DR2) 5' 2" (DR3), 4' 10" (DR6) and 4' 7" (DR7) |
| FT | Wheel form tool, 5/16" HSS, wheel face to chuck | Each |
| WW1 | Wagon wheels 3'-1" Plain spoke |  |
per axle |
| WW2 | Wagon Wheels 3'-1" open spoke |  |
per axle |
| WW3 | Wagon wheels 3'-1" three-hole disc |  |
per axle |
"Alan Gibson" Wheels
|
A selection of "Alan Gibson" S scale kits and parts is also available either through the society or direct. For the prices of "Alan Gibson's" parts see their Web site. Driving wheels are supplied as 2 wheels plus 1/8" axle whilst bogie and tender wheels 2 wheels unmounted with plain and pin-point axles |
| Driving Wheels | Diameter |
Crank Pin |
Throw |
||
| GS855 | 4'-7 1/2" | 15 spoke, plain rim |
IL |
12" |
|
| GS855S | 4'-7 1/2" | 15 spoke, bevel rim |
IL |
12" |
|
| GS858 | 4'-10" | 16 spoke, plain rim |
IL |
11" |
 |
| GS862 | 5'-2 1/2" | 16 spoke, plain rim |
IL |
11" |
|
| GS866ST | 5'-6" | 17 spoke, bevel rim |
PB |
13" |
|
| GS868ST | 5'-8" | 17 spoke, bevel rim |
PB |
13" |
|
| GS872 | 6'-0" | 19 spoke, bevel rim |
PB |
13" |
 |

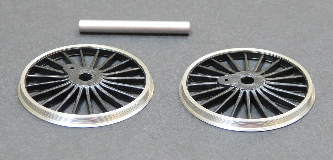

| GS878M | 6'-6" | 20 spoke, plain rim |
IL |
11" |
 |
| GS880 | 6'-8" | 21 spoke, bevel rim |
PB |
13" |
|
| GS881 | 6'-9" | 22 spoke, plain rim |
IL |
13" |
|
| GS884 | 7'-0" | 22 spoke, plain rim |
IL |
13" |
| Bogie and Tender Wheels |
Quantity |
|||
| GS009 | 3'-1 1/2" | DMU plain disc |
axles |
|
| GS836GP | 3'-0" | 9 spoke, plain rim |
axles |
|
| GS838 | 3'-2" | 10 spoke, plain rim |
axles |
|
| GS839 | 3'-3 1/2" | 10 spoke, plain rim |
axles |
|
| GS839ST | 3'-3 1/2" | 10 spoke, bevel rim |
axles |
|
| GS842 | 3'-6" | 10 spoke, plain rim |
axles |
|
| GS844 | 3'-8" | 10 spoke, plain rim |
axles |
|
| GS851 | 4'-3" | 12 spoke, plain rim |
axles |
|
| GS851ST | 4'-3" | 12 spoke, bevel rim |
axles |
|
|
|
|
|
|
|
|
